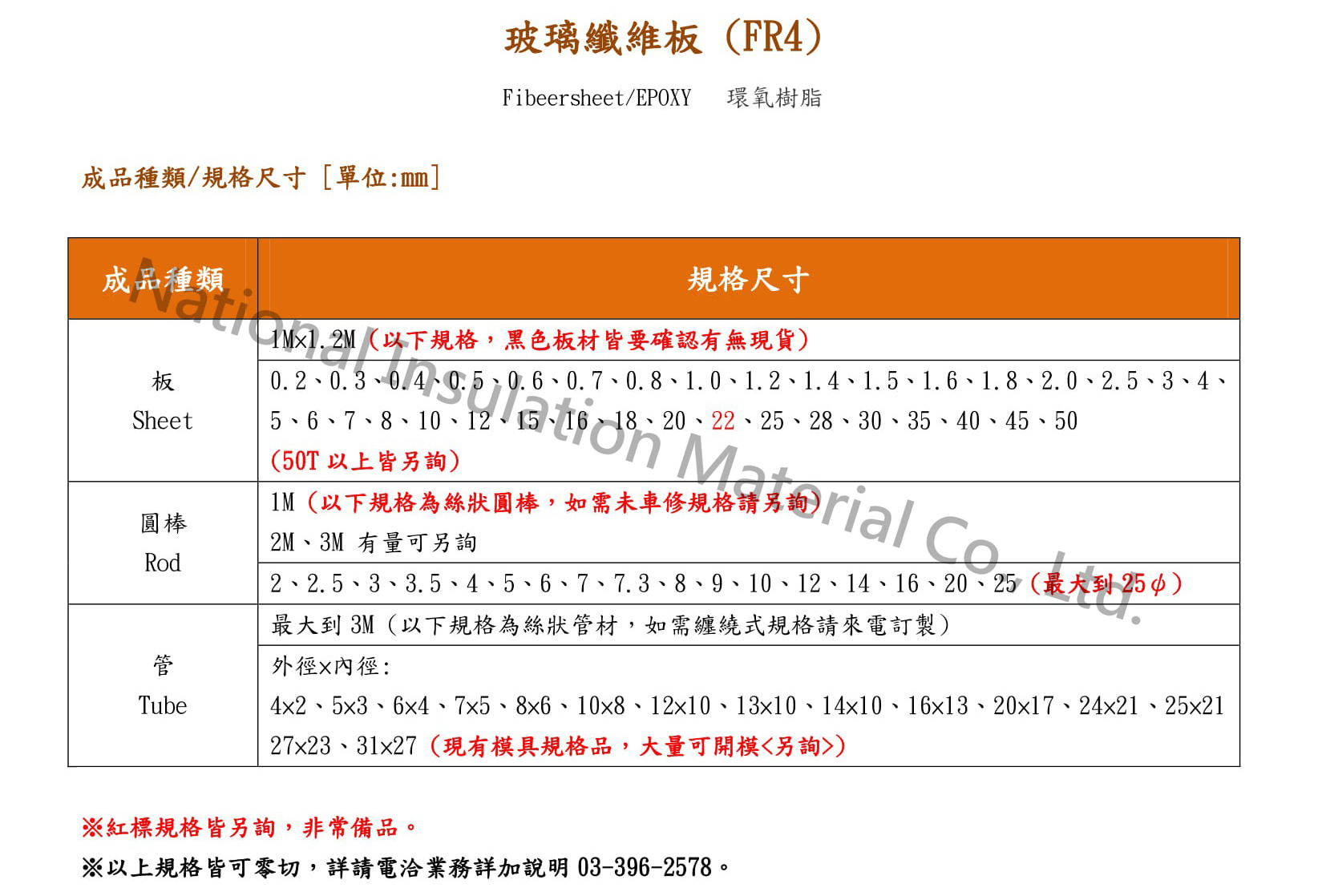

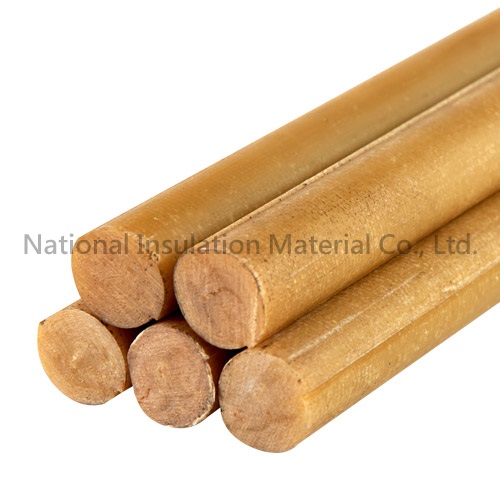

Fiberglass board (FR4) Fibeersheet/EPOXY Epoxy product manual: 1. Sheet: yellow, light green, black - normal, black - antistatic (all inquiries) ※ Board surface: bright surface / matte surface, please contact us for details. 2. Round bar: yellow (not repaired) / green (filament) 3. Pipe: light green (filament / winding) 4. Fiber belt: please contact us ※The pipes can be painted (please inquire) ※The wound fiber tubes are all made to order. ★Characteristics: good mechanical strength, acid and alkali resistance, low water absorption and high insulation. The highest temperature resistance can reach 180~200°C (2hr continuous). The material itself has a flame resistance of UL-94V0 grade and a withstand voltage of 150KV. ★Use: 1. Thin plates are generally used for flexible circuit (FPC) reinforcing plates, electronic, motor, communication and other insulating parts. 2. Thick plates are generally used in PCBfixtures, test boards, electronics, and motor insulation materials.
Competitive Price: Place of Origin: Taiwan Sales Method: Export, Manufacture, OEM/ODM, Service Payment Term: T/T
Fiberglass board (FR4) Fibeersheet/EPOXY Epoxy product manual: 1. Sheet: yellow, light green, black - normal, black - antistatic (all inquiries) ※ Board surface: bright surface / matte surface, please contact us for details. 2. Round bar: yellow (not repaired) / green (filament) 3. Pipe: light green (filament / winding) 4. Fiber belt: please contact us ※The pipes can be painted (please inquire) ※The wound fiber tubes are all made to order. ★Characteristics: good mechanical strength, acid and alkali resistance, low water absorption and high insulation. The highest temperature resistance can reach 180~200°C (2hr continuous). The material itself has a flame resistance of UL-94V0 grade and a withstand voltage of 150KV. ★Use: 1. Thin plates are generally used for flexible circuit (FPC) reinforcing plates, electronic, motor, communication and other insulating parts. 2. Thick plates are generally used in PCBfixtures, test boards, electronics, and motor insulation materials.
Competitive Price: Place of Origin: Taiwan Sales Method: Export, Manufacture, OEM/ODM, Service Payment Term: T/T
