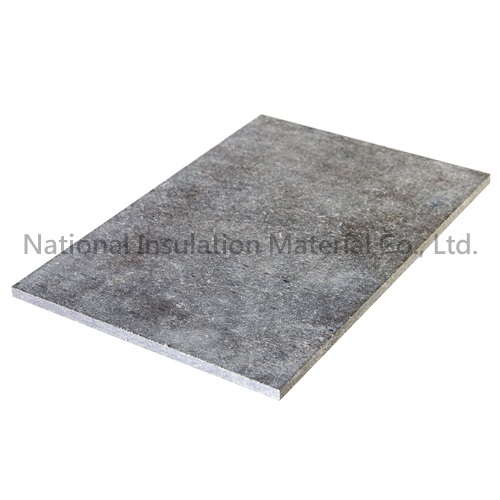

Blue non-asbestos board (HS2350)

Blue non-asbestos board (HS2350)
Press-entraining/ Compressed Asbestos Joint Sheet Gasket

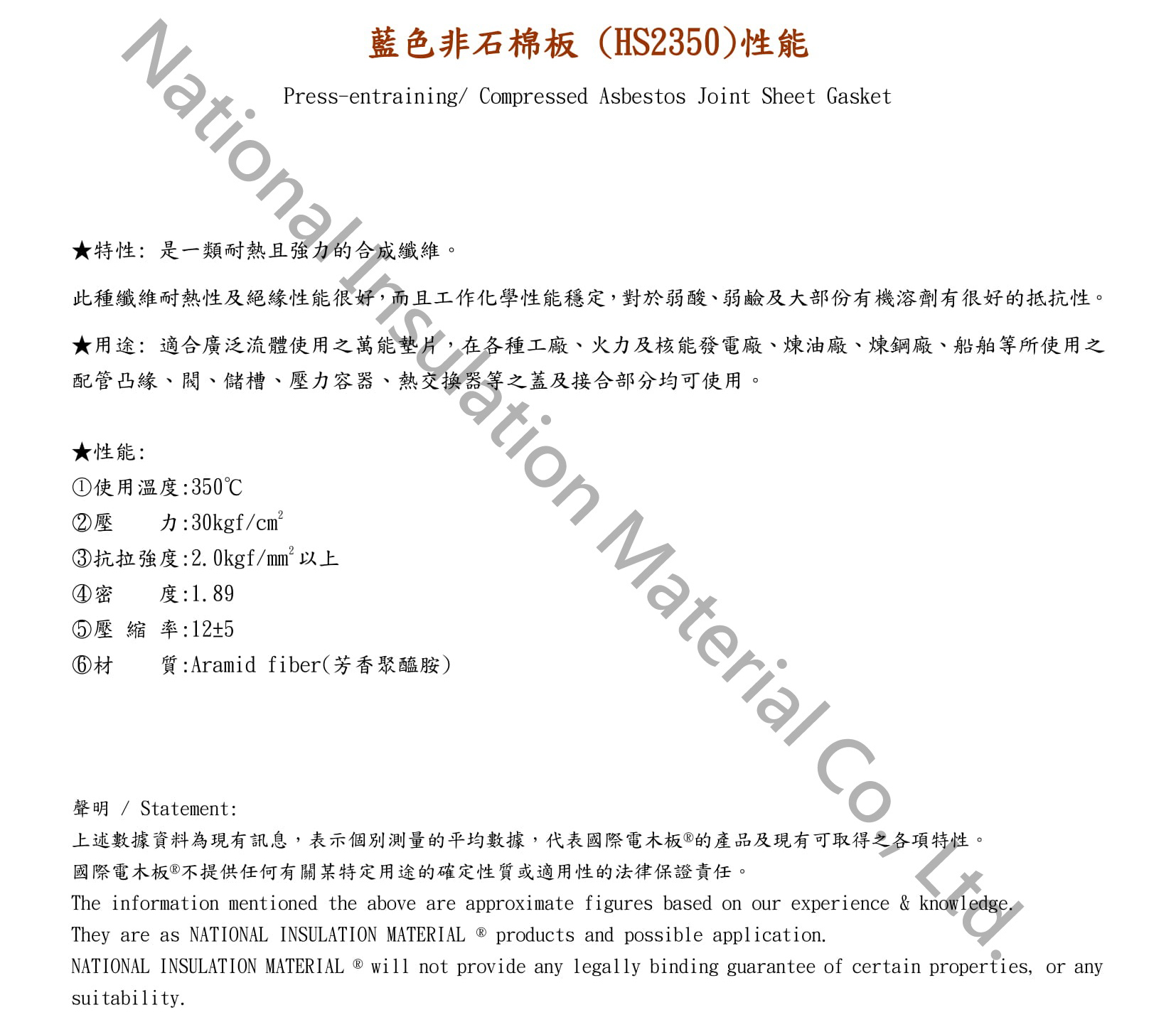

product manual:
1. Sheet: blue (only thin coil)
★Characteristics: It is a kind of heat-resistant and strong synthetic fiber.
The fiber has good heat resistance and insulation properties, and has stable working chemical properties, and is very resistant to weak acids, weak bases and most organic solvents.
★Usage: Universal gasket for a wide range of fluids, piping flanges, valves, storage tanks, pressure vessels, heat exchangers, etc. used in various factories, firepower and nuclear power plants, oil refineries, steel mills, ships, etc. Both the cover and the joint portion can be used.

★ Performance:
1. Operating temperature: 350 ° C
2. Pressure: 30kgf/cm2
3. Tensile strength: 2.0kgf/mm2 or more
4. Density: 1.89
5. Compression rate: 12±5

6. Material: Aramid fiber (aromatic polyamide)

Competitive Price:
Place of Origin: Taiwan
Sales Method: Export, Manufacture, OEM/ODM, Service
Payment Term: T/T
