Synthetic stone (CDM)

Quantity:
Synthetic stone (CDM)
Glass fiber reinforced plastic

product manual:
Plate: black, blue, red
★ Black: Anti-static grade, it is recommended to use parts and processes that are sensitive to static electricity.

★Features: Synthetic stone is made of polyester, combined with modified epoxy resin and glass fiber reinforced plastic.
The size is accurate and constant, and the low thermal conductivity helps the temperature of the tin furnace to be stable, the quality of the tin is uniform, and the chemical resistance does not pollute the tin furnace.
Resistant to cold and heat cycle (300 ° C can be recycled more than 10,000 times), stable and flat, and light weight, easy to clean, gold finger free glue....etc.


★ Uses: Suitable for SMT and PCB in wave soldering or infrared reflow ovens.

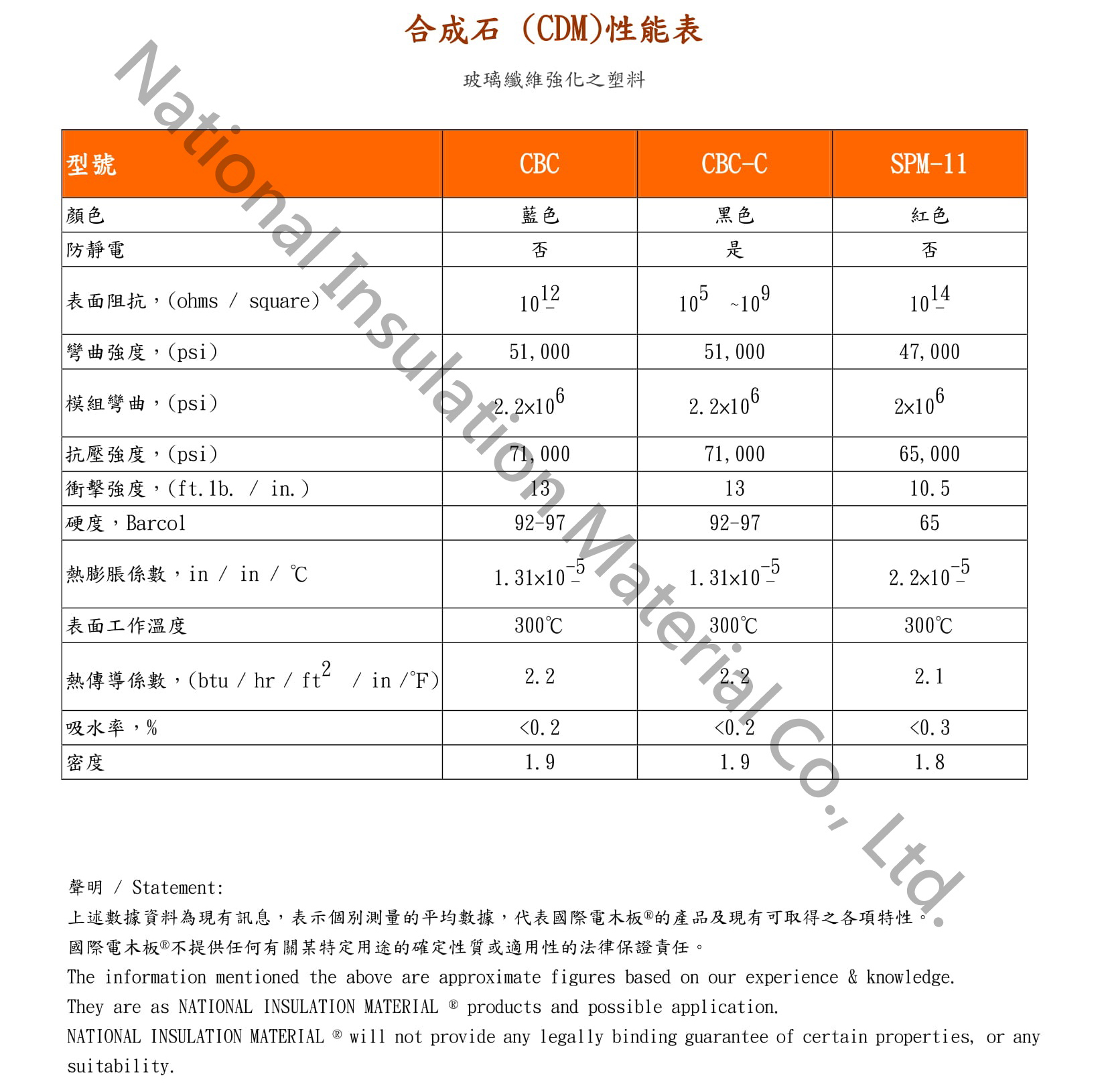

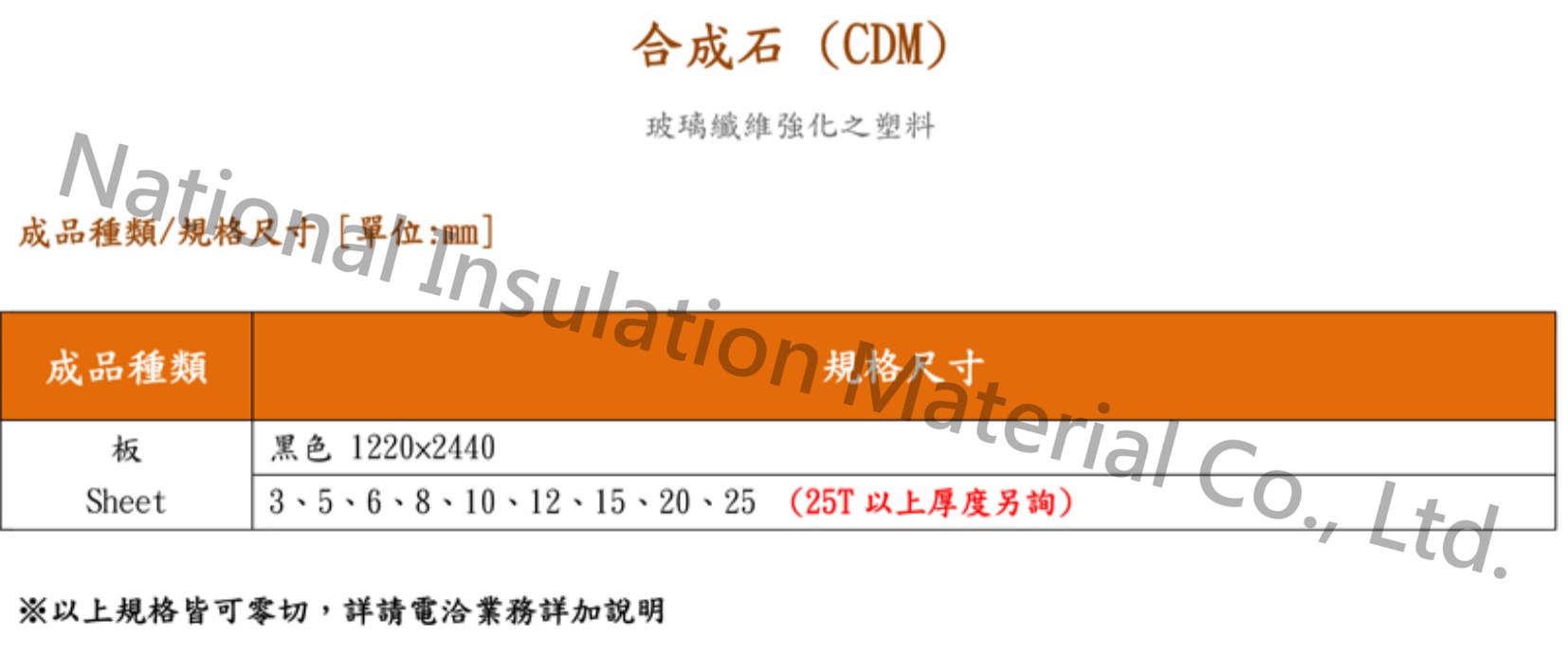

合成石-1-20190610-0 合成石-規格-1-20190611-0

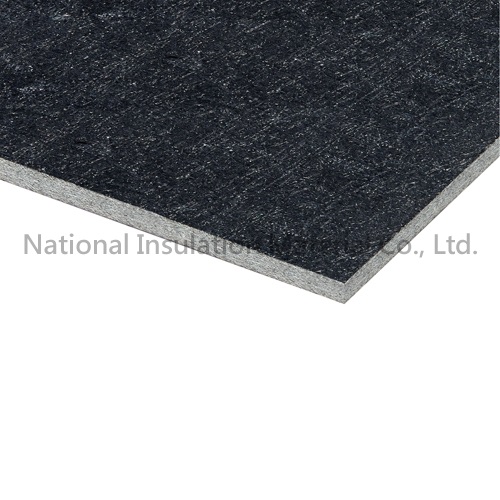

Capture-One-Catalog0121-1

Competitive Price:
Place of Origin: Taiwan
Sales Method: Export, Manufacture, OEM/ODM, Service
Payment Term: T/T
